SPECIFICATIONS

Aspect Ratio: 16:9

Brightness: 1000cd/m²

Color Depth: 10Bit(8bit+2bit)

Contrast Ratio: 1300:1

Dot Pitch: 0.13695(H) x RGB x 0.13695(V) mm

Pixel pitch: 0.13695(H) x RGB x 0.13695(V) mm

Screen Size: 23.8" IPS

Unit Size: 570x385x33.5mm

Unit Weight: 7.42kg

Viewing Angle: 89°/89°(L/R) 89°/89°(U/D)

after-sales service: Call Center and on-line Technical Support

application: TV news production, broadcasting house, TV broadcasting truck

aspect ratio: 16:9

backlit type: LED

brand name: SEETEC

brightness: 1000cd/m²

built-in speaker: Yes

color: Black

contrast ratio: 1300:1

display ratio: 16:9

feature: Speaker

horizontal viewing angle: 89º

interface type: 4x12G-SDI, HDMI 2.0, RS485, LAN, SFP (optional), GPI, USB Type-C

panel type: IPS

place of origin: Fujian, China

private mold: Yes

products status: New

refresh rate: 60 Hz

response time: 25 ms

screen type: LCD Display

series: For Business

use: For Business

vertical viewing angle: 89º

warranty(year): 1-Year

wide color gamut: NTSC 105%

widescreen: Yes

Product Description

Specification

Display Spec.
Model	S24
Screen Size	23.8" IPS
Color Depth	10Bit(8bit+2bit)
Color Display	1.07B
Color Gamut	DCI-P3 98.7%, REC709 99.9%, NTSC 105%
Resolution	3840×2160 pixels
Pixel pitch	0.13695(H) x RGB x 0.13695(V) mm
Aspect Ratio	16:9
Brightness	1000cd/m²
Contrast Ratio	1300:1
Backlight	LED
Viewing Angle	89°/89°(L/R) 89°/89°(U/D)

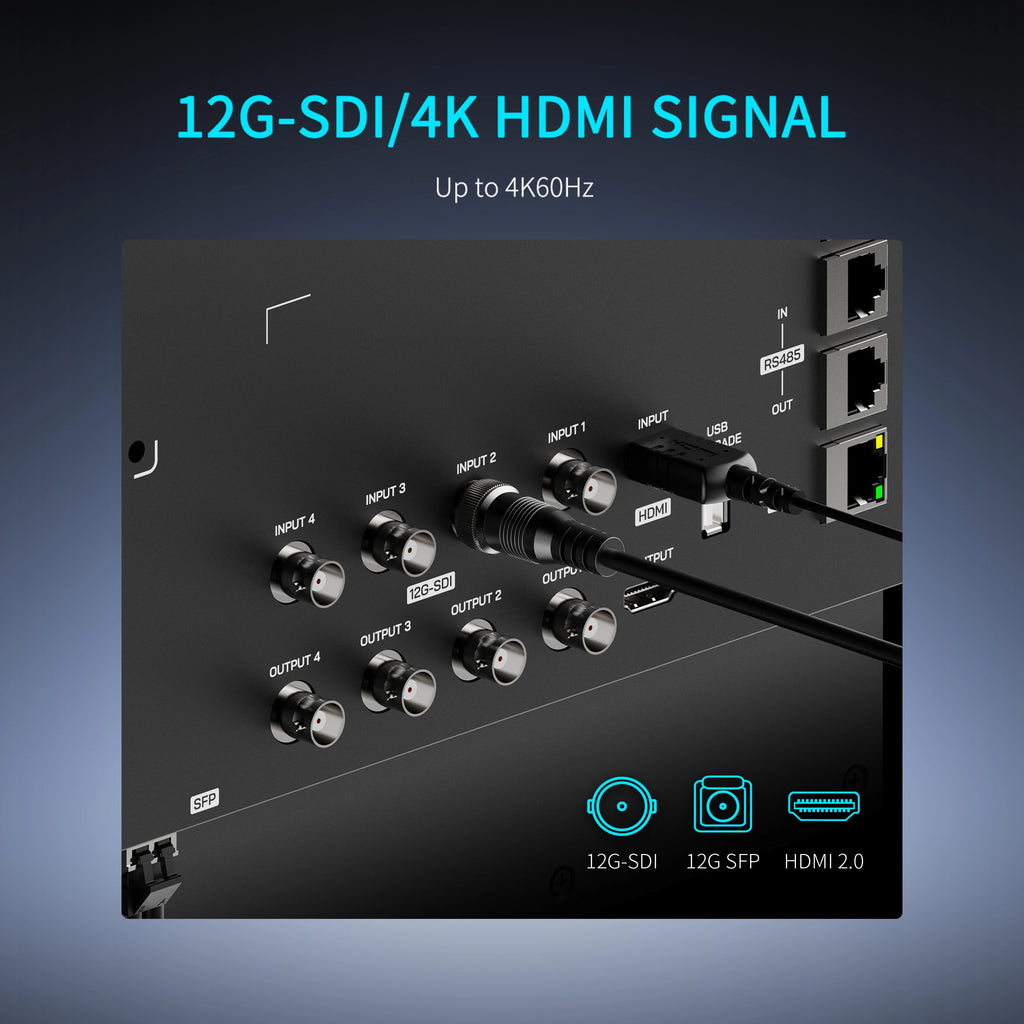

Input

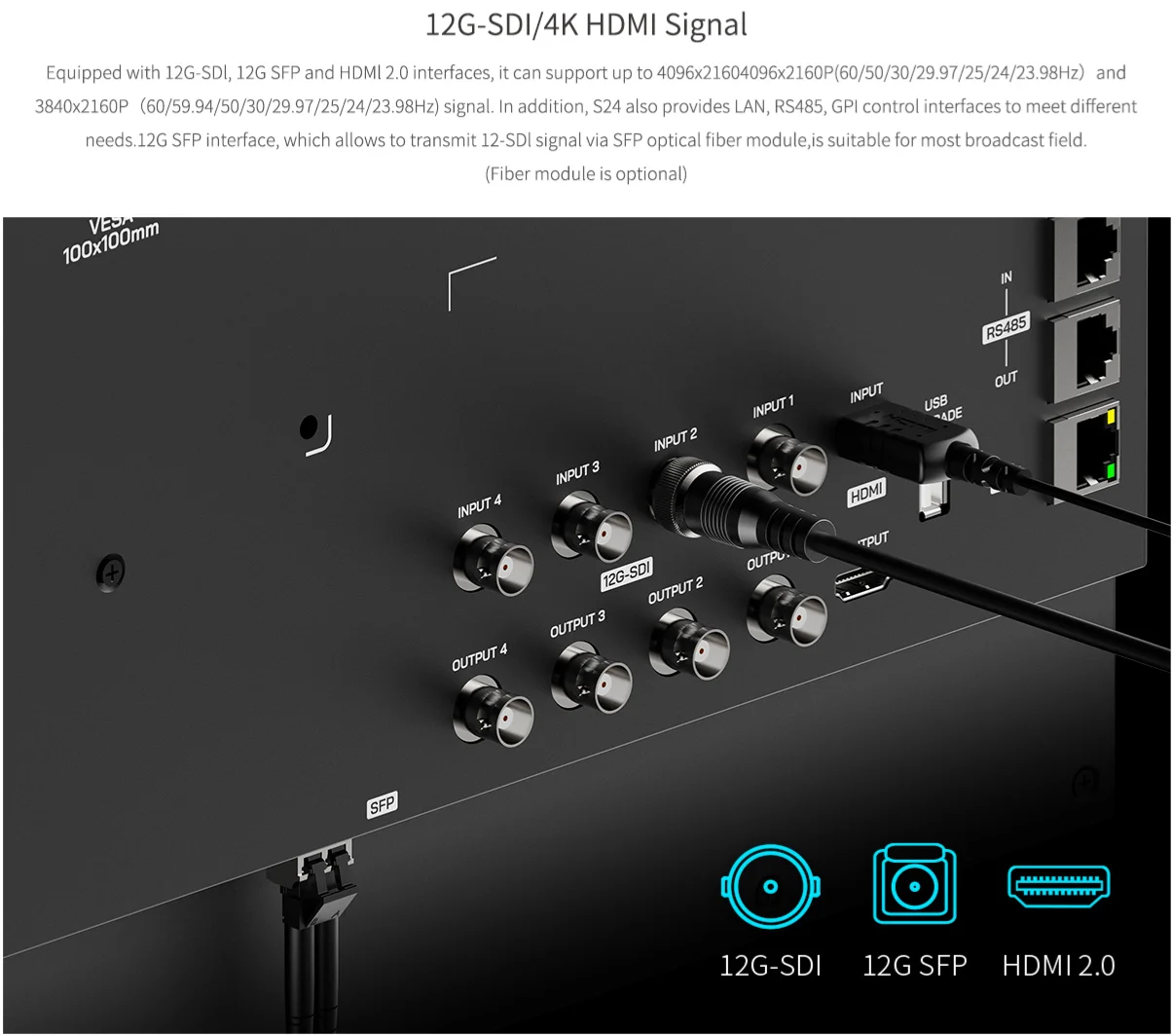

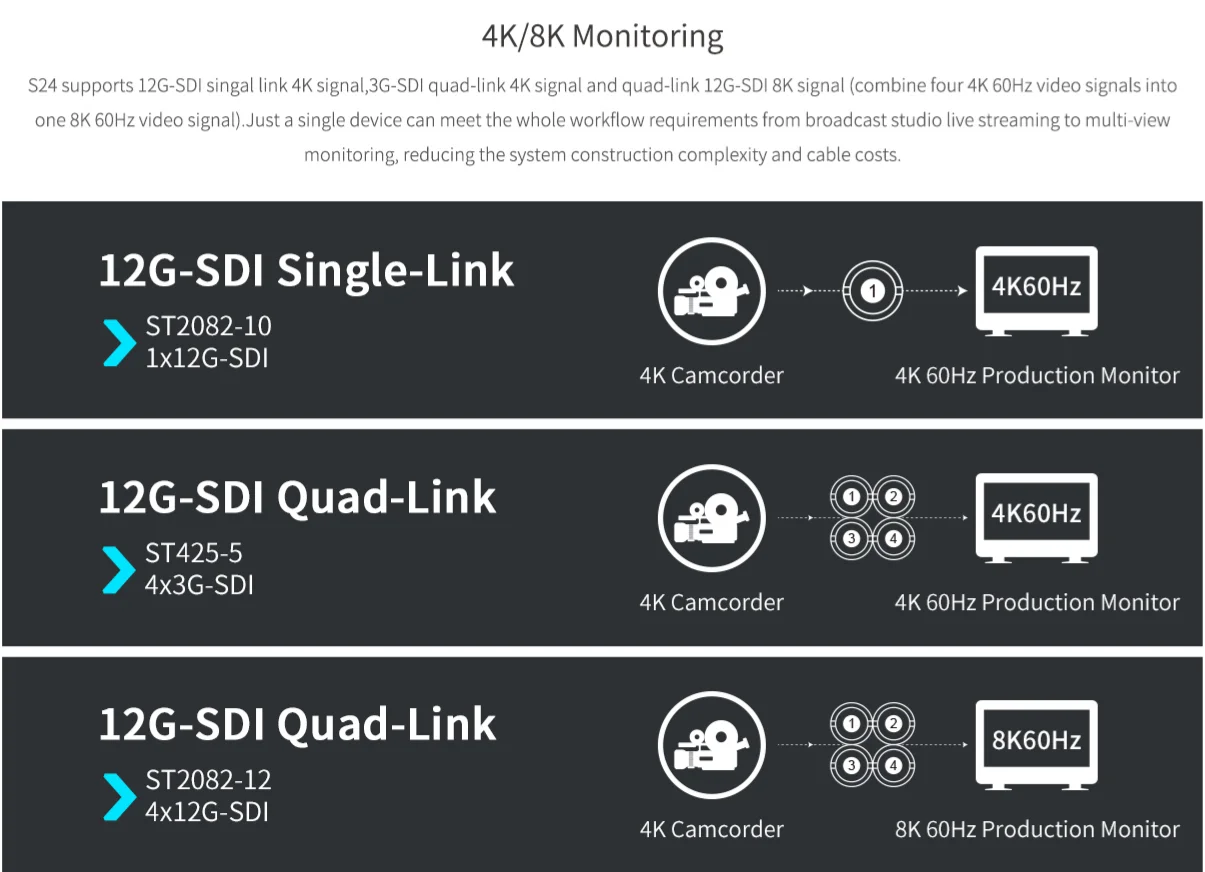

4 X 12G-SDI	12G-SDI (combine four 12G-SDI signal support 8K input)
2 X HDMI	HDMI 2.0
1 X RS485	RS485
1 X GPI	GPI
1 X USB	USB (upgrade and LUT import)
1 X LAN	Ethernet
1 X SFP	SFP Module (optional)

Output
4 X 12G-SDI	12G-SDI (combine four 12G-SDI signal support 8K output)
1 X RS485	RS485

Audio
Audio	Stereo Headphone, Speaker

SDI Support Format

720p(60/59.94/50/30/29/25/24/23.98)

1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)

SDI/SFP Support Format
SMPTE 274	4:2:2 Y'Cb'Cr' 10-bit	1080p(23.98/24/25/29.97/30/50/59.94/ 60 ）;1080i (50/59.94/60 ); 1080PsF (23.98/24/25/ 29.97/30); 2048 x 1080p (23.98/ 24/ 25/29.97/30/47.95/48/50/59.94/ 60); 2048 x 1080psf (23.98/24/25/29.97/ 30)
SMPTE 296	4:2:2 Y'Cb'Cr' 10-bit	720p (50,59.94, 60 )
SMPTE 260	4:2:2 Y'Cb'Cr' 10-bit	1035i (59.94/60 )
SMPTE 295	4:2:2 Y'Cb'Cr' 10-bit	1080i (50 )
SMPTE 425-B	4:2:2 Y'Cb'Cr' 10-bit	1080p (50/59.94/60) ; 2048 x 1080p ( 47.95/48/50/59.94/60 )
SMPTE ST 2036	4:2:2 Y'Cb'Cr' 10-bit	3840 x 2160p ( 23.98/24/ 25/ 29.97/ 30/ 50/ 59.94/ 60)

HDMI Support Format

720p (60/59.94/50/30/29.97/25/24)

3840×1080i (60/59.94/50)

1080p (60/59.94/50/30/29.97/25/24/23.98)

3840x2160p (60/50/30/29.97/25/24/23.98)

4096×2160p (60/50/30/29.97/25/24/23.98Hz)

General
Input Voltage	AC 100V~240V
Power Consumption	Max 95W
Working Temperature	0°C~50°C
Storage Temperature	-20°C~60°C

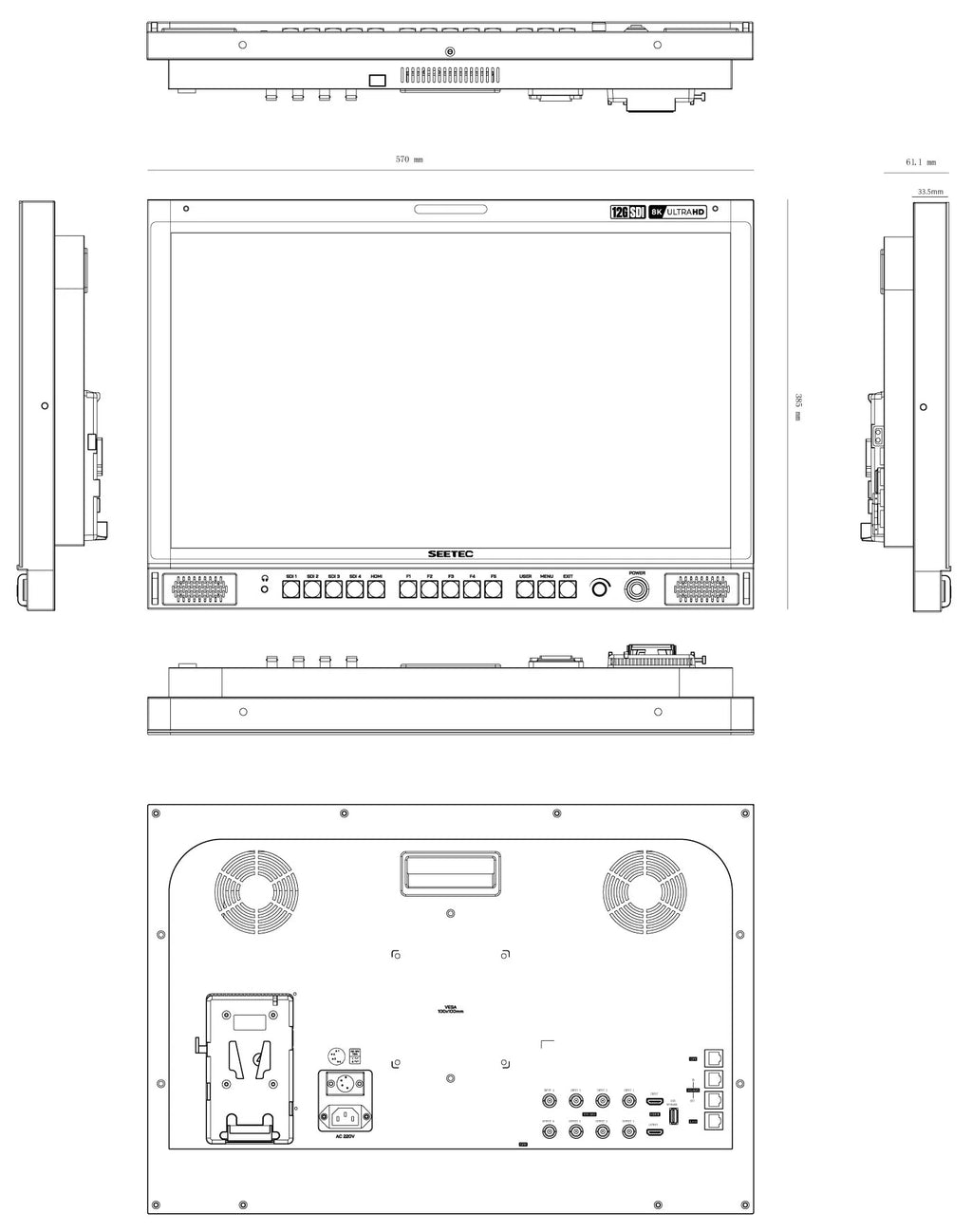

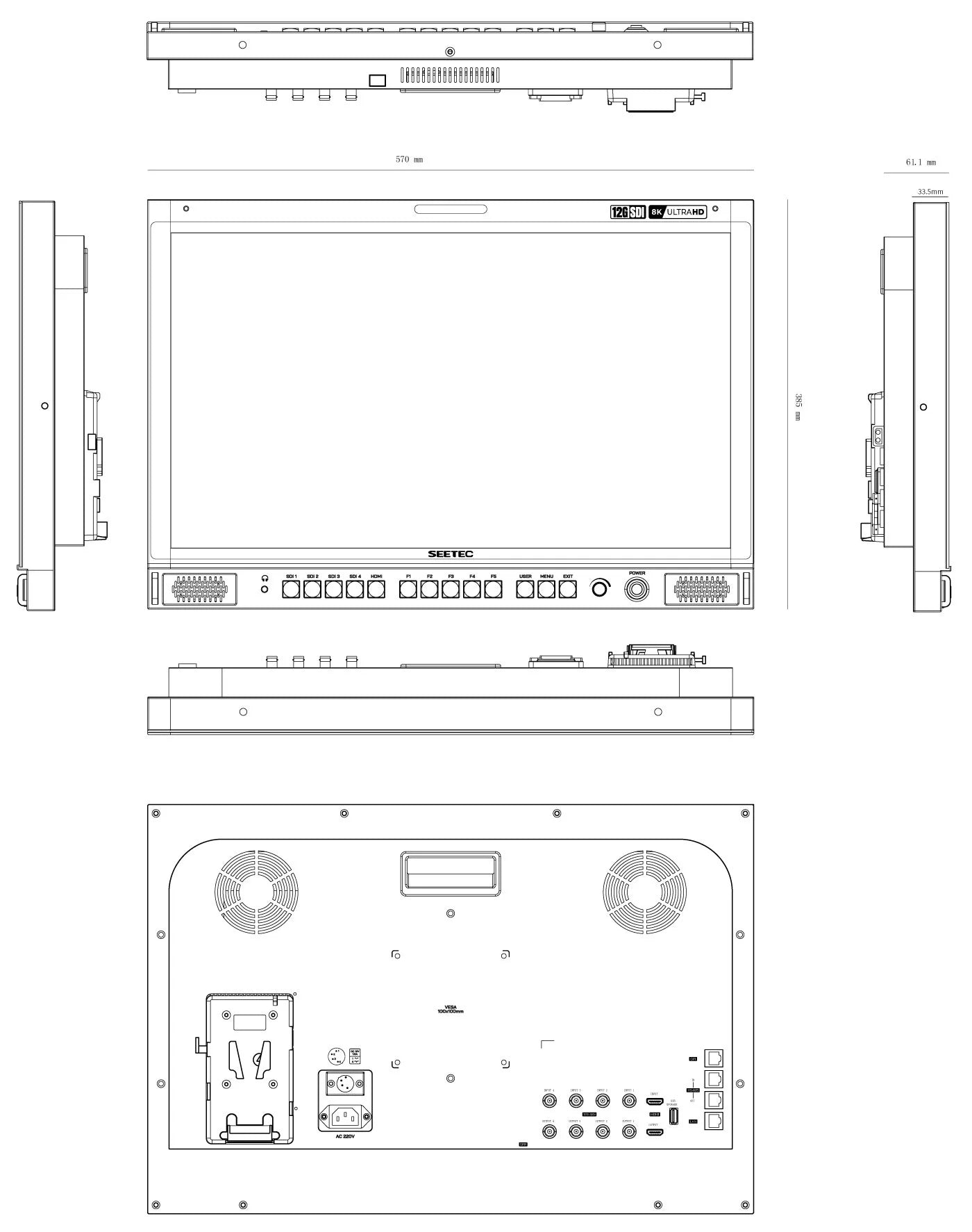

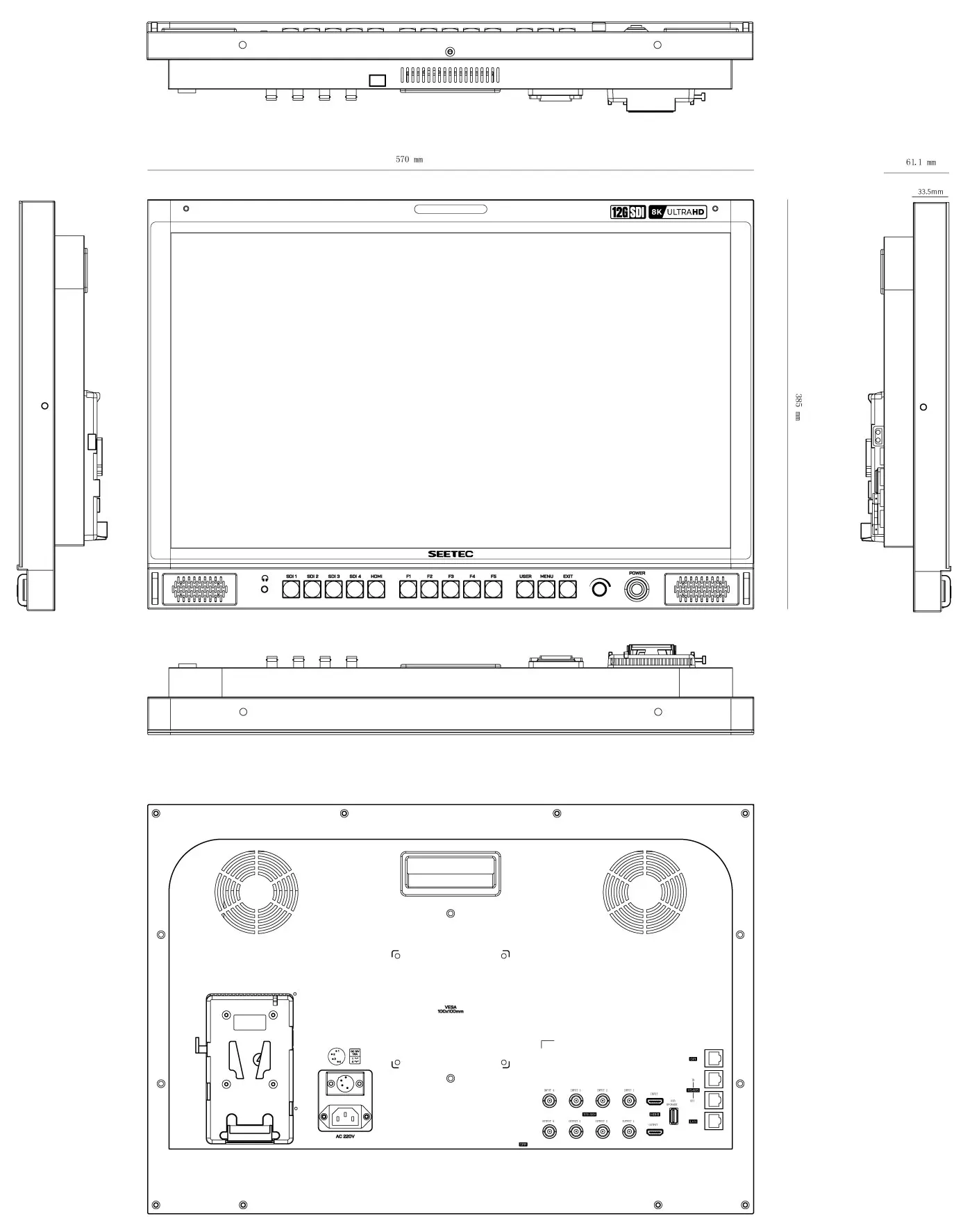

Unit Size	570x385x33.5mm
Unit Weight	7.42kg
Outer Carton Qty	1pc
Outer Carton Size	645x160x480mm
Gross Weight	10.5kg
