SPECIFICATIONS
Application: lithium battery shell
Battery Cell: for 18650 /21700 cells
Brand Name: Neutral packing
Color: Black
Features: Hailong 3 battery box

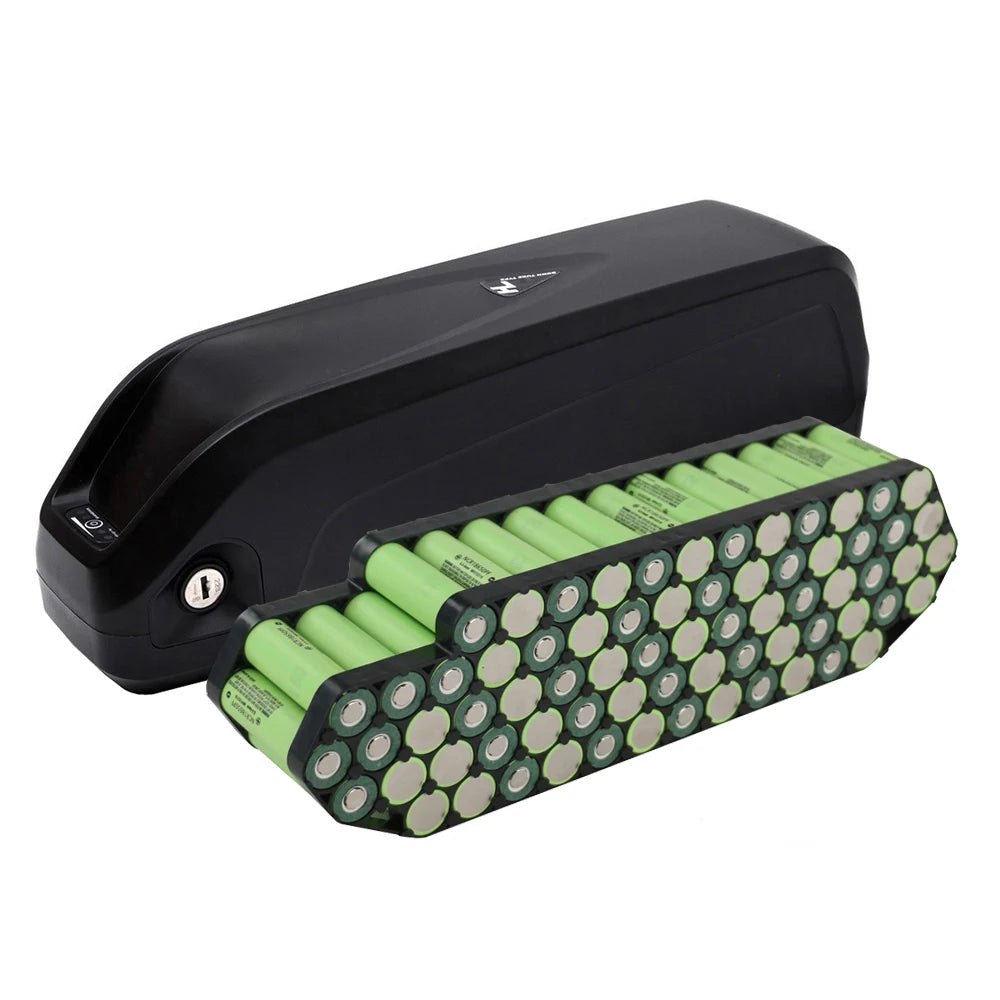

Max 18650 cells quantity: 70pcs
Model: electric bicycle battery case
Model Number: WP-HL03
Place of Origin: Guangdong, China
Product name: Ebike Battery box

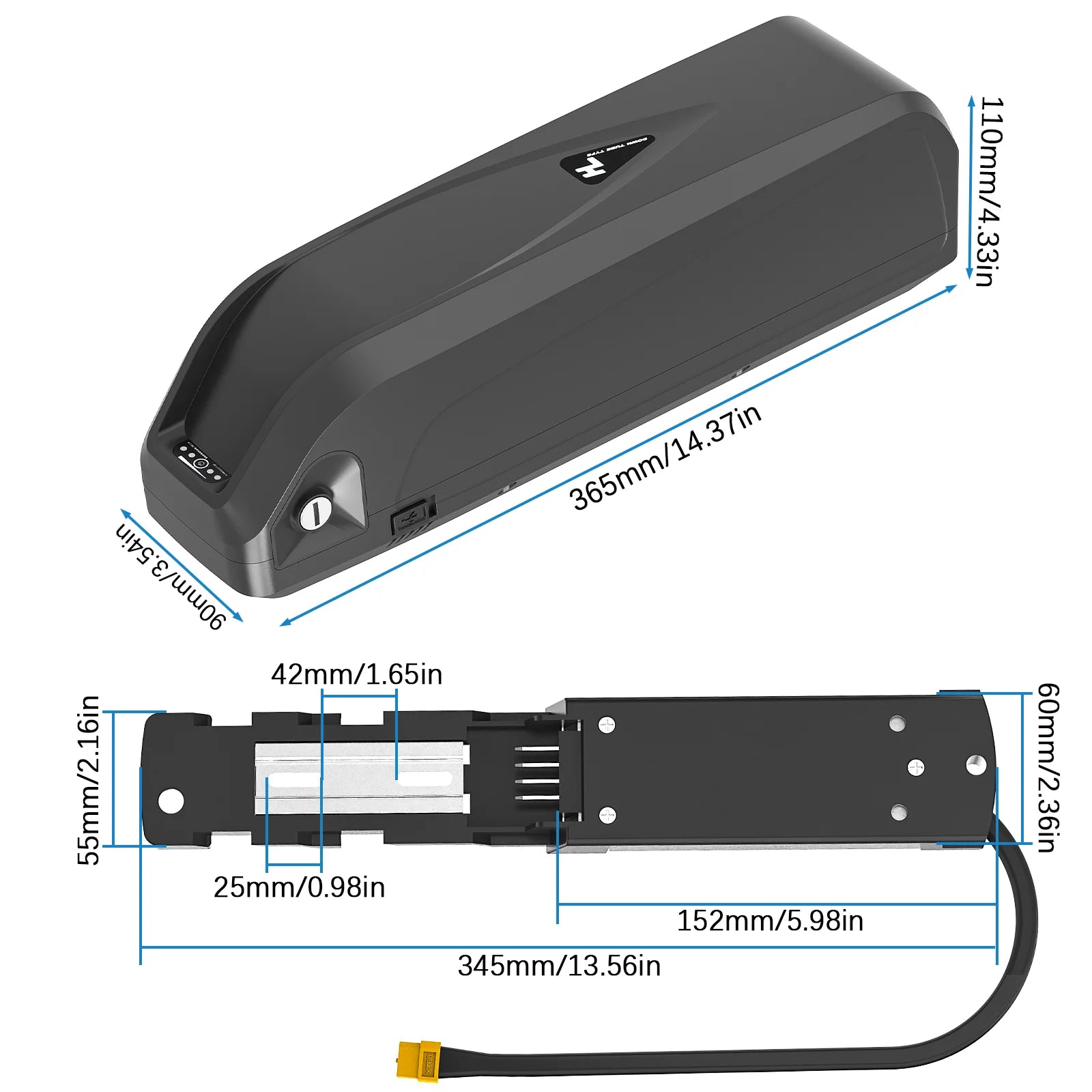

Size: 365*90*110mm
Type: Lithium Battery,Lithium Battery, Newest Hailong Box
Product Name |
Hailong Electric Bike Lithium Battery |
Ready to Ship |
USA & UK & Canada & Germany warehouse |
Model No. |
HL03 |
Voltage |
48V |
Capacity |
12.5A / 17.5A / 20A |
Discharge Cut-off Voltage |
36.4V |
Battery Charge Cut-off Voltage |
54.6V |
Max Discharge Current |
40A |
Charging Current |
2A / 3A |
Charging Time |
3~4 Hours (Fast)
6~7 Hours (Standard) |

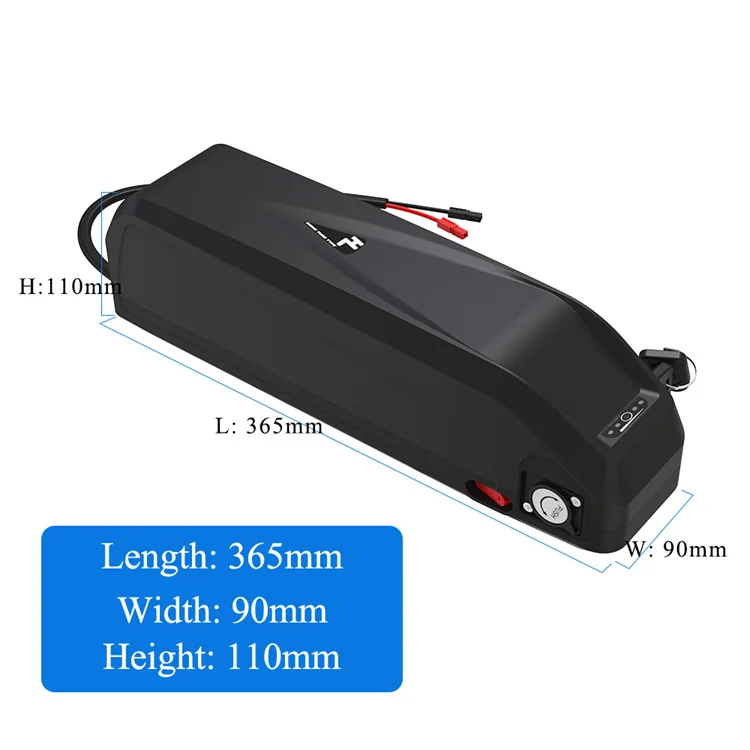

Dimension |
365*90*110mm |

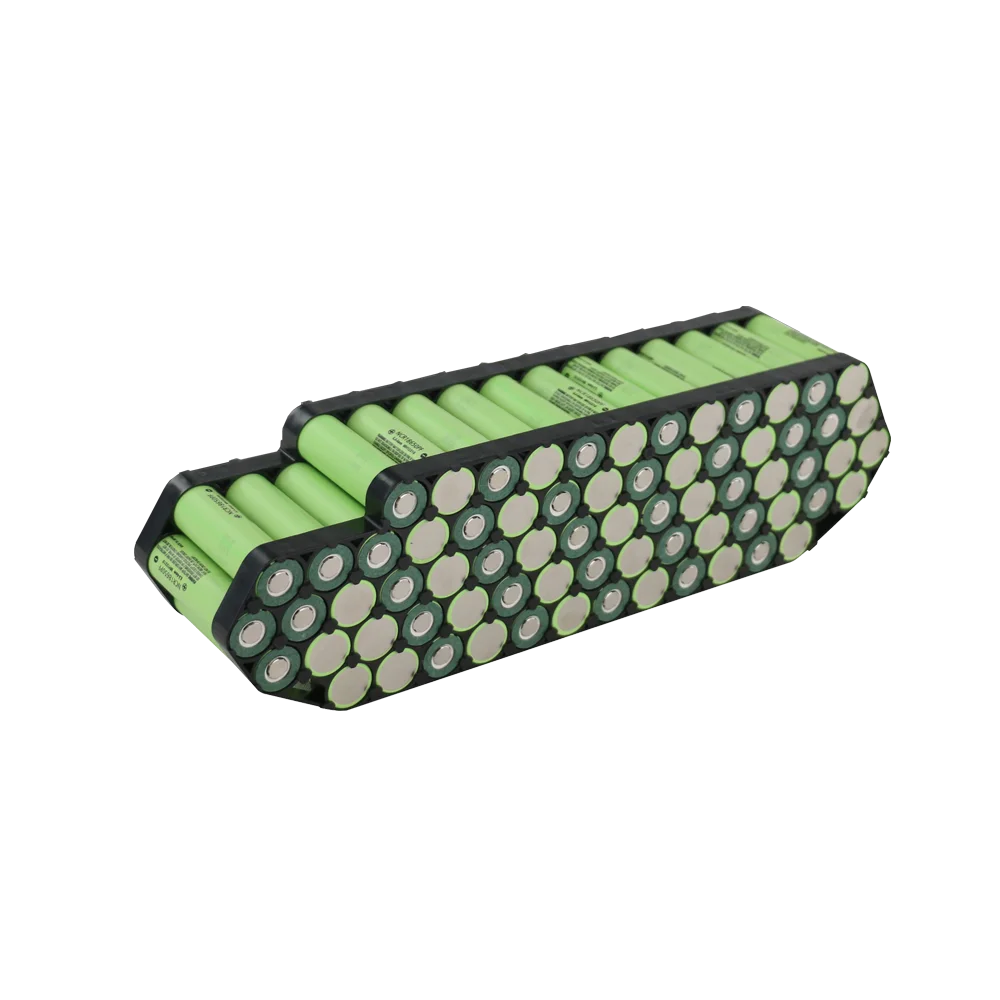

Battery Cell Inside |

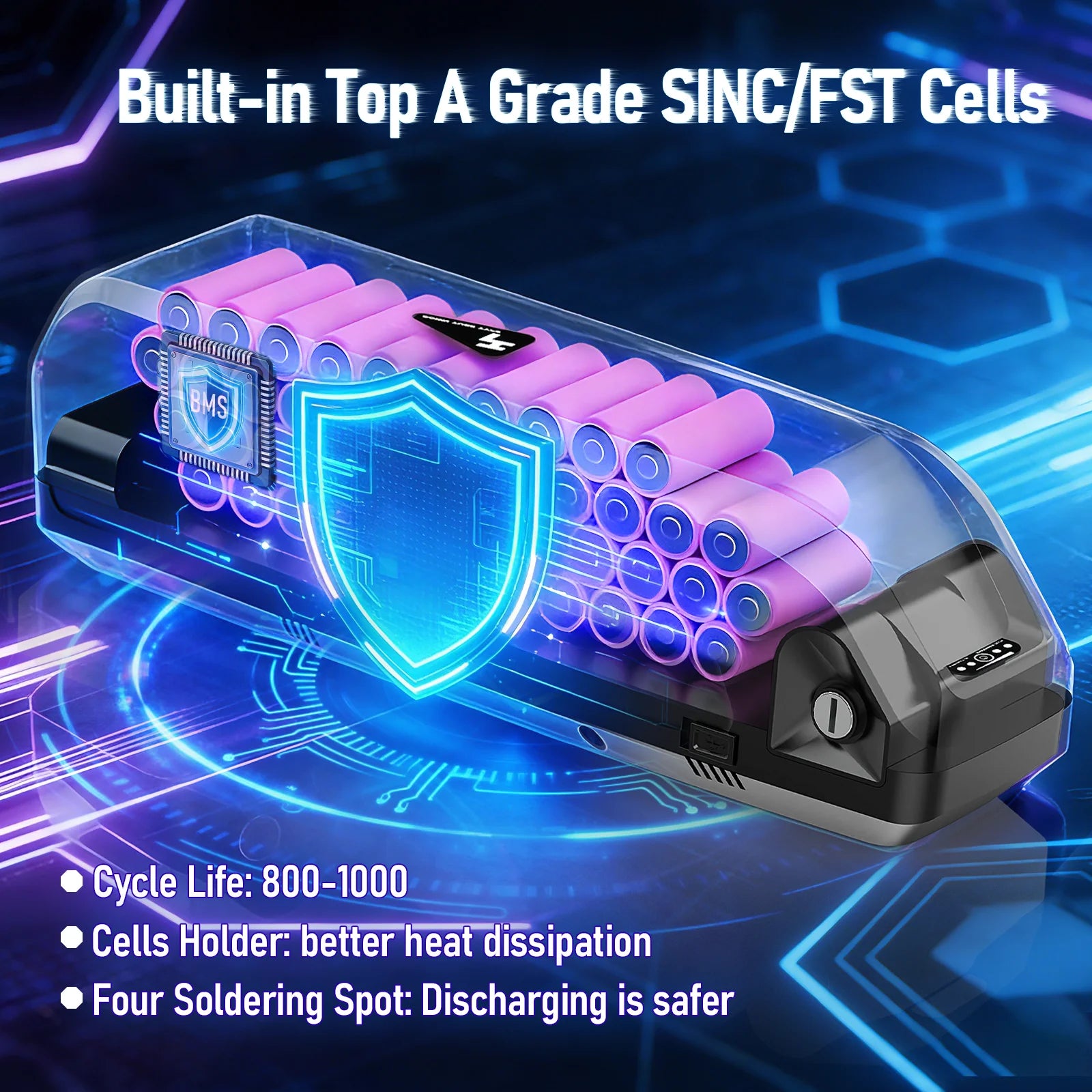

2500mAh 18650 battery cells |
Function |

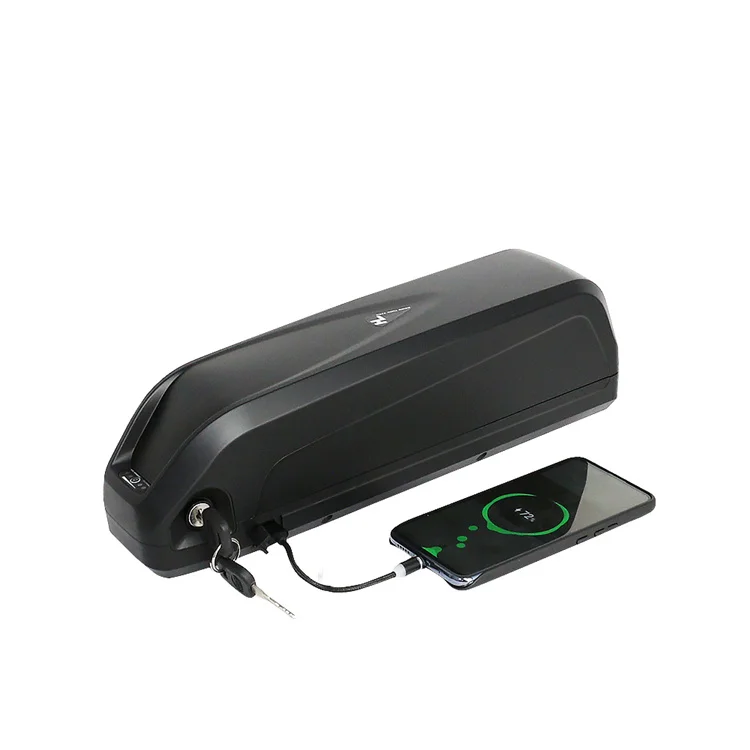

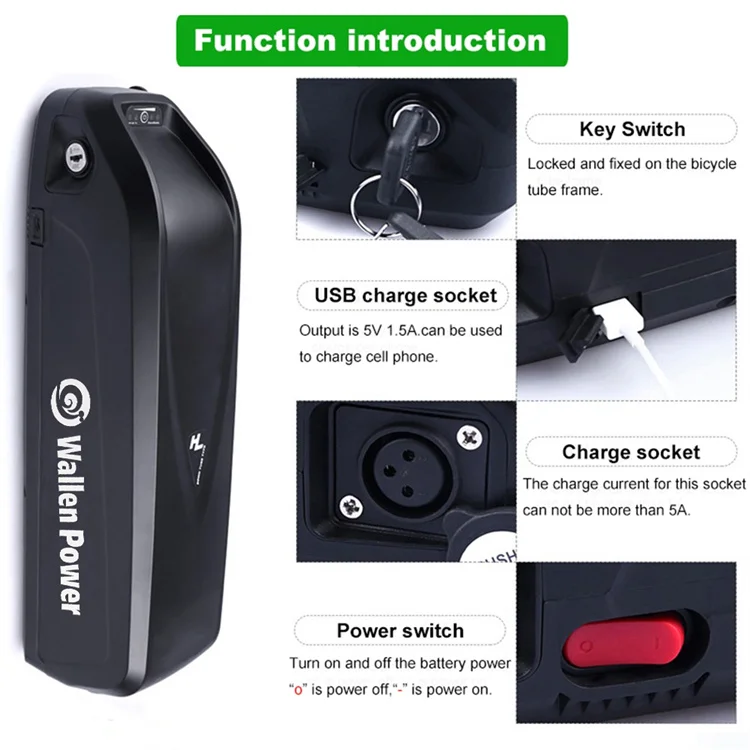

USB Port, LED battery power level light, Power switch ON/OFF |
Battery BMS Function |
Over-charge, Over-discharge, Over-current, Temperature protection, Cell balancing, Secondary protection. |
The 48v, 13Ah lithium battery of electric bike is Removable, suitable for 500W/750W /1000W motor
The 48v, 17.5Ah lithium battery of electric bike is Removable, suitable for 500W/750W /1000W motor
The 48v, 20Ah lithium battery of electric bike is Removable, suitable for 500W/750W /1000W/1200W/1500W(UP TO 1500W) motor

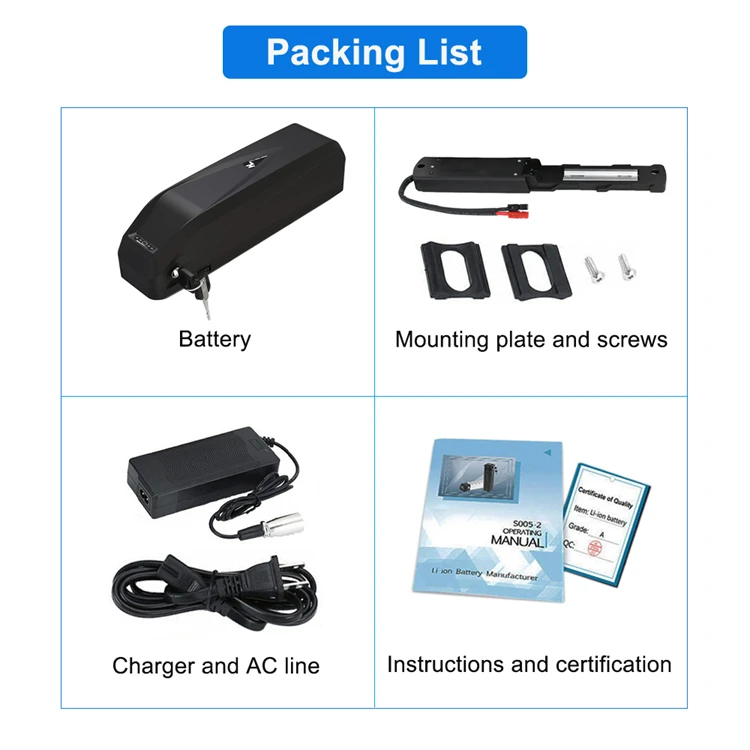

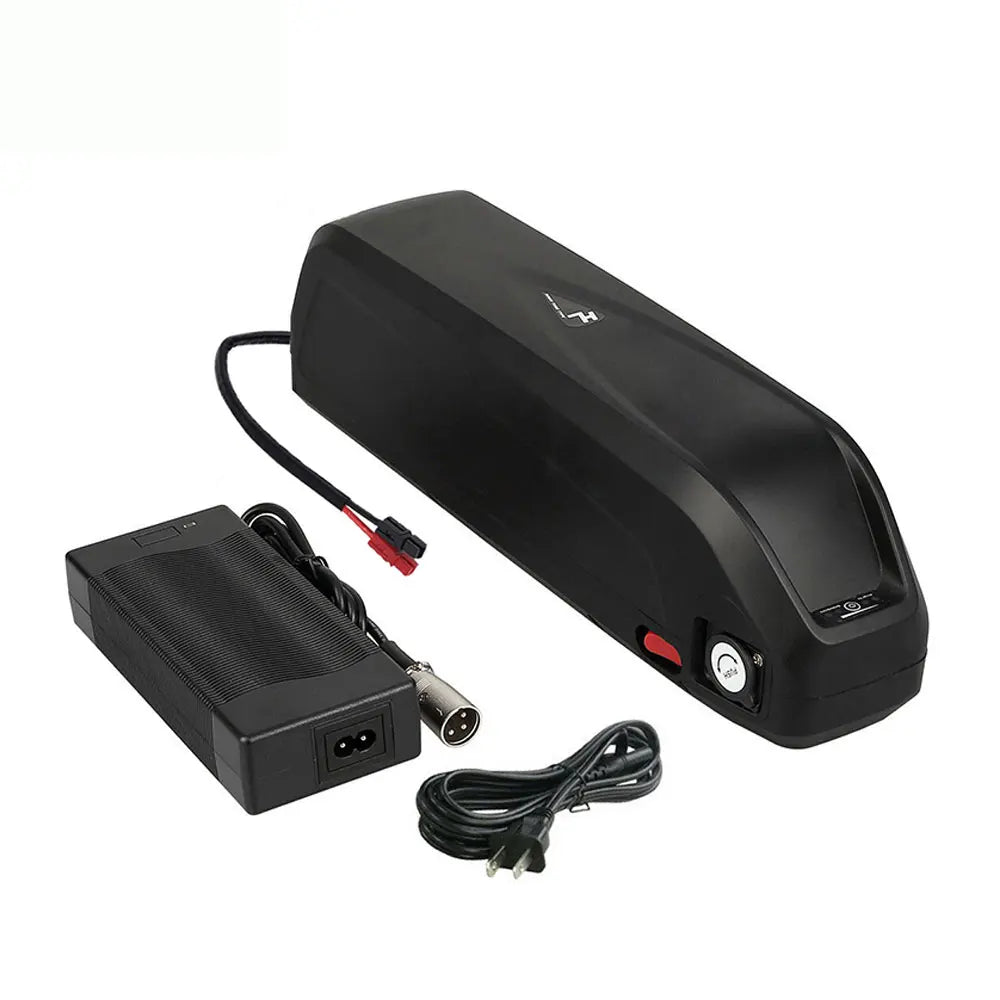

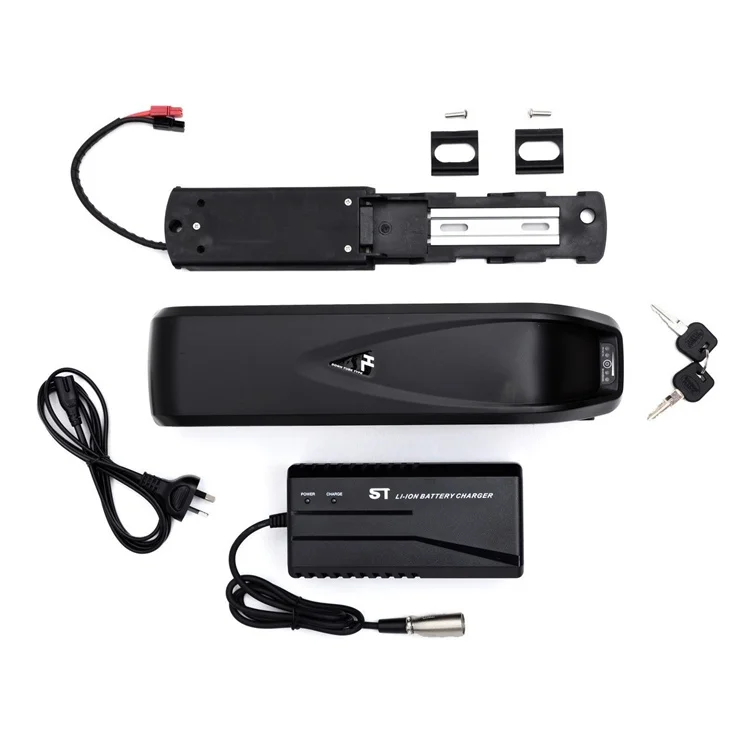

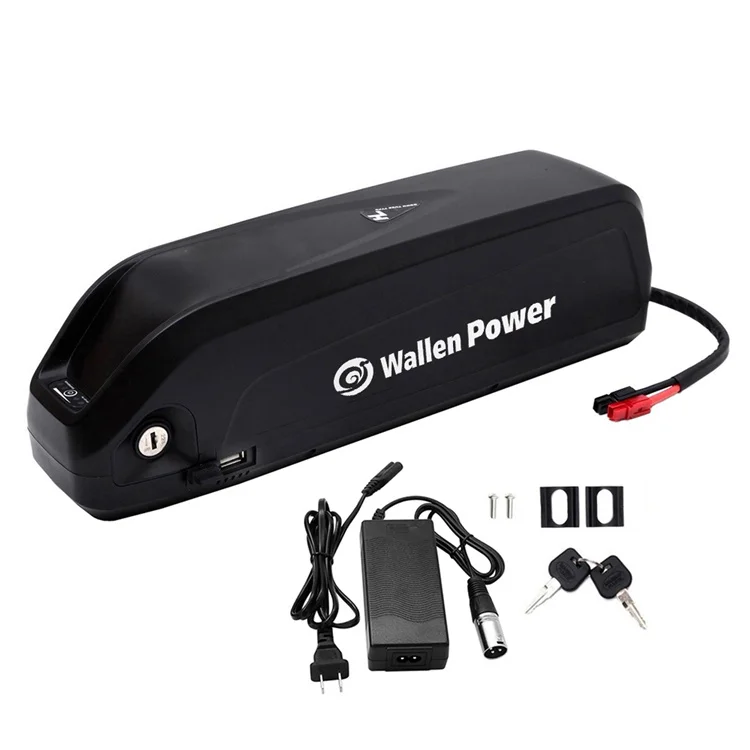

* 1 × Lithium battery pack with inbuilt BMS
* 1 × Battery Charger and AC wire

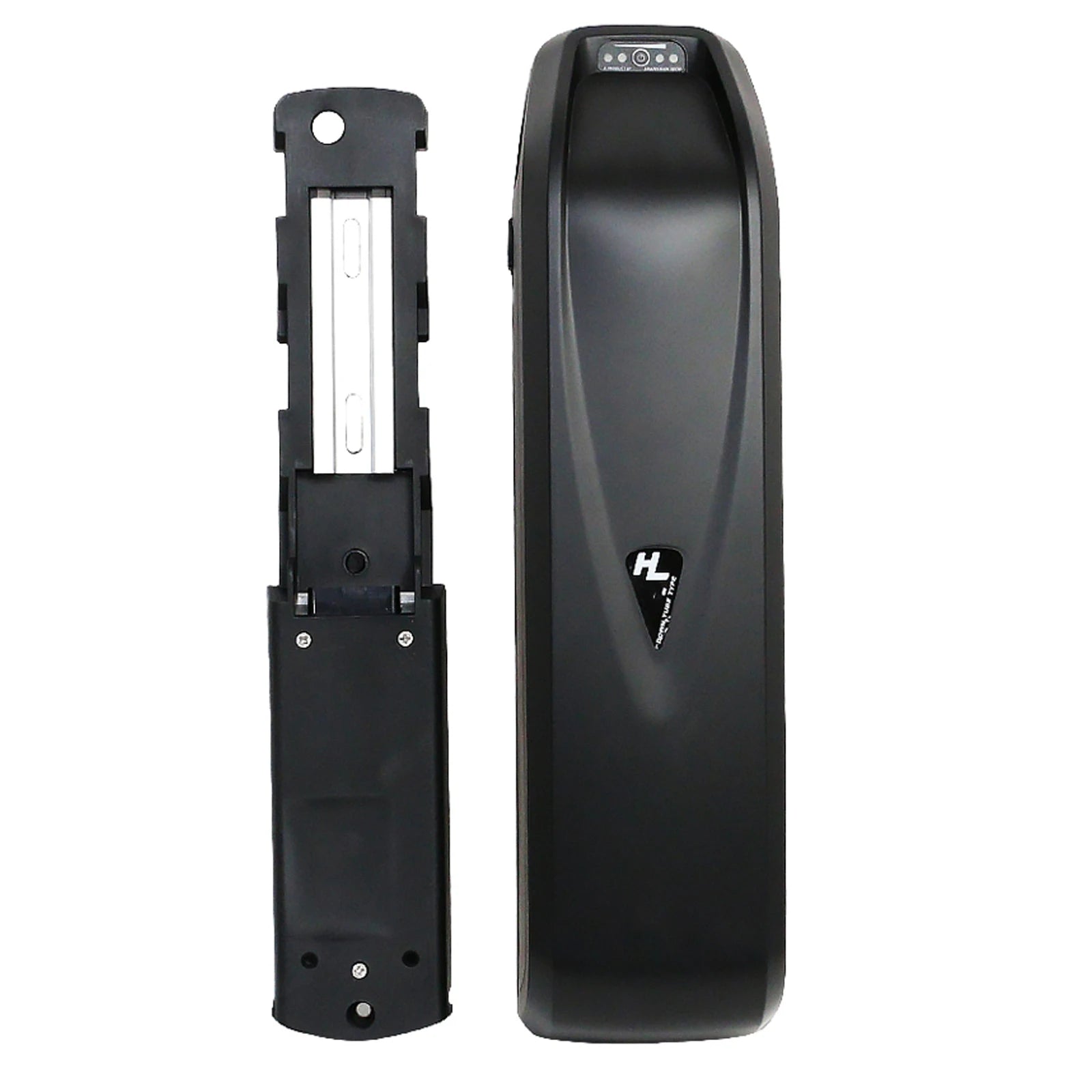

* 1 × Battery fix plate, with 30cm discharge cable
* 2 × Keys
* A pair of Anderson discharge connector, soldered ( If you needed other connector, please contact us）
* １×battery manual
Note: If you need other types of connector (eg: XT 60, XT 90 and so on), feel free to contact us, we will send you one compatible with
your controllers.

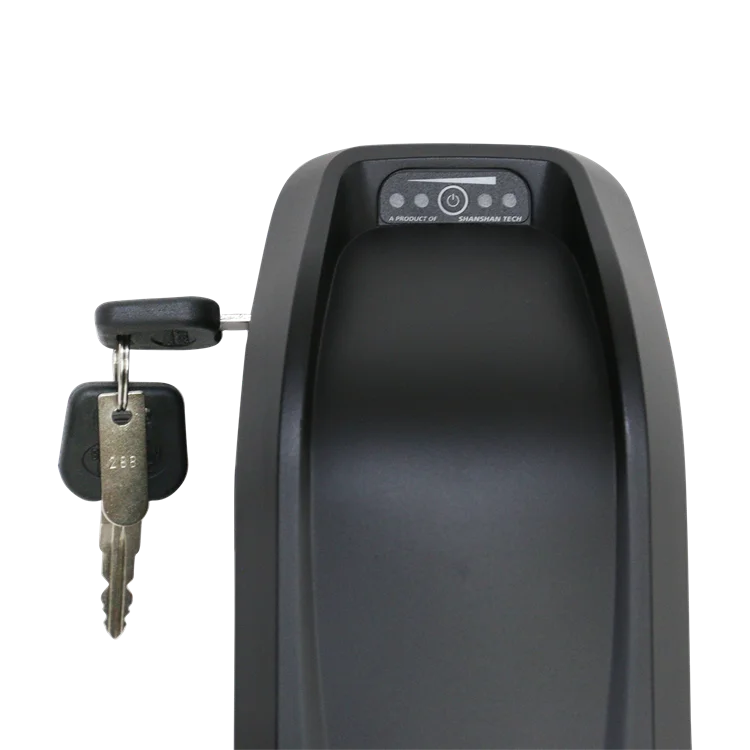

LED Battery Power Level Light
Our battery can fit most motor kits, for example: Bafang, Tongsheng, but exclude the four: Bosch, SHIMANO, Yamaha, Panasonic. Best choice for adult electric mountain bike, commute ebike, hybrid bicycle, e trike, fat tire bike, bicicleta
electrica, bicicletas electrica para hombres .
Welcome to Share Your DIY Pictures!
2-5 DAYS DELIVER: We have our own warehouse in US, fast delivery provides customers a great shopping experience.
Our company have more than ten years of experience in the production of lithium batteries. Our batteries have passed UL, CE, MSDS, ROHS and other national safety certifications, they also have passed the SGS test, mainly exported to the United States, Europe, Australia and so on.
WARRANTY POLICY & CUSTOMIZED SERVICE
We are factory direct sales. All new Wallen Power batteries enjoy a 1-year warranty. We have technical team based to offers the best customer support. We has been in long-term cooperation with Samsung, LG, Sanyo. You can customized e-bike conversion assemblies, include types of cell, various parameter of batteries or motor.
Our li-ion battery has been though thousands of time repetitive discharge and safety test, Battery cells 100% balance before pack for voltage,resistance & capacity, operations accredited to ISO 9001, CE, RoHS, MSDS. Lithium batteries has higher weight-energy ratio and volume-energy ratio, so lithium batteries are lighter and smaller. High voltage. Self-discharge is small and can be stored for a long time, which is the most outstanding advantage of the battery.
1. Do you offer free shipping for the order?
We have warehouse in USA, UK, Canada and Germany. If the battery we have in warehouses then we will offer free shipping for your order to the local address. And you can receive it within 2-5 days.
2. Is this battery water resistant? IP65 Grade waterproof function. Which means you can riding while in small rains, but can not stay in rains for too long.
3.what can you buy from us?
lithium ion Battery, E-bike Lithium ion battery, Power tool lithium ion battery, Solar power Lithium ion Battery
4. Does this battery have to be fastened to the frame, or can I carry it in a bag?

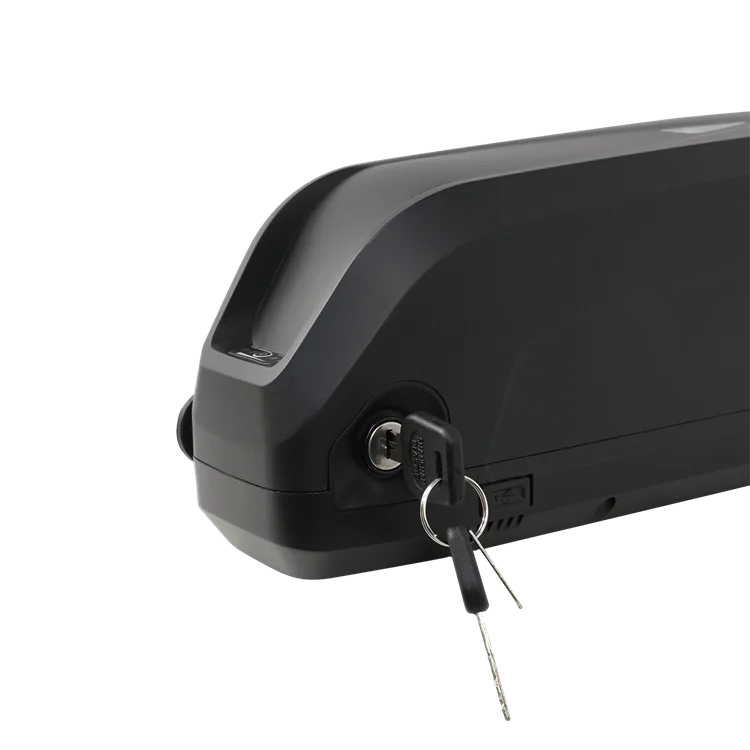

Battery can be removed by a key and you can put it in a backpack if so desired.
5. What CE do you have? Also can you do customization?
Yes we have CE, RoHs, UN 38.3, MsDs, ISO9001 certification. We can do customization.Such as different brand battery cell, Voltage, Capacity,Dimension,Constant current.
